⚙️ Engineering Excellence in Aluminum Casting #
Aluminum alloy high-pressure die casting (HPDC) is the bedrock of modern lightweight, high-strength industrial manufacturing. Our advanced facilities provide stable and high-precision casting engineering tailored for demanding sectors. With over 20 years of expertise in tool design, mold flow analysis, and mechanical engineering, we ensure that every shot complies with zero-defect delivery standards, ensuring your critical parts reach cross-border assembly lines ready for seamless installation.
🔬 Superior Material Grades & Mechanical Integrity #
We work with specialized global aluminum alloy grades to optimize thermal conductivity, structural elasticity, and anti-corrosion properties:
- ADC12 / AlSi9Cu3: Excellent castability, perfect for complex geometric housings, transmission gearboxes, and automotive engine components.
- A380 / AlSi8Cu3Nb: High mechanical properties and exceptional pressure tightness; the global benchmark for heavy-duty industrial brackets and structural chassis.
- A356 / A360: Superb fluid handling capabilities and structural ductility, ideal for protective anodized coatings, airtight electronic heat sinks, and marine-grade components.
🏭 Manufacturing Spectrum & Capabilities #
Our tool-making shop utilizes sophisticated CAD/CAM environments running Pro/E, UG, and advanced Magma/Moldflow simulations to eliminate critical air entrapment and cold shuts before the steel mold block is cut. Our manufacturing capabilities bridge heavy automotive components with thin-walled structural housings.
Technical Limits for Aluminum Castings #
| Engineering Parameter | Production Specification | Industrial Core Application |
|---|---|---|

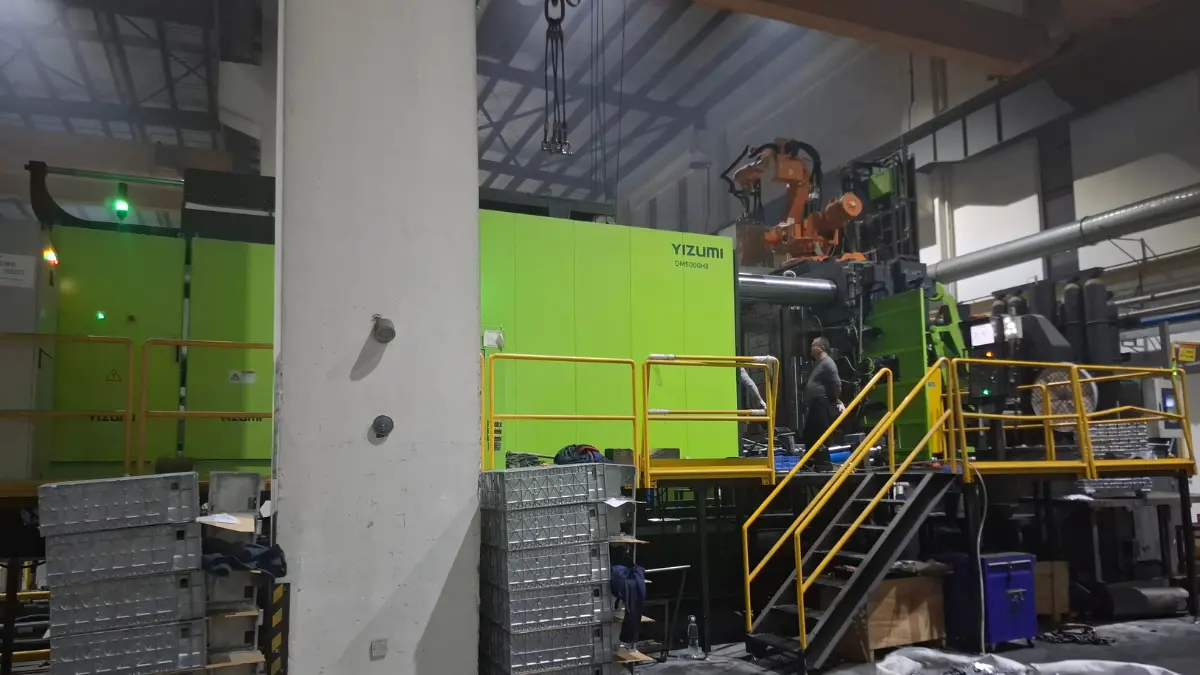

| Machine Tonnage Range | 400 Tons to 5000 Tons (Yizumi Fleets) | Large powertrain blocks to intricate thin-wall structures |
| Wall Thickness Target | Minimum 1.5 mm (Thin-wall optimization) | Optimized lightweight electric vehicle (EV) structures |
| Machining Accuracy | CNC tolerances down to ±0.01 mm | Precise mating surfaces, O-ring grooves, threaded blind holes |
| Surface Treatment Options | Shot Blasting, Powder Coating, E-Coating, Chromate Passivation | High anti-corrosion rating, SureTech 650 specialty finishes |
Comprehensive Material Property Comparison Table #
| Aluminum Alloy Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Thermal Conductivity (W/m·K) |
|---|---|---|---|---|
| ADC12 (AlSi9Cu3) | 310 | 160 | 3.5% | 96 |
| A380 (AlSi8Cu3) | 320 | 160 | 3.5% | 96 |
| A356 (AlSi7Mg) | 280 | 220 | 5.0% | 150 |
| A360 (AlSi10Mg) | 300 | 170 | 5.0% | 113 |
🛡️ Robust Quality Testing for Automotive & Electronics #
Kingship implements an uncompromising Quality Management System operating under strict international automotive standards. Every single batch of high-pressure aluminum cast components undergoes structural and mechanical verification to eliminate sub-surface porosity before reaching downstream CNC machining centers:
- Porosity & Defect Control: Advanced vacuum-assisted injection cells integrated with real-time shot speed curve monitoring and optimal multi-stage venting designs.
- Dimensional Stability: 100% CMM (Coordinate Measuring Machines) mapping against native 3D CAD models to guarantee tight tolerances for critical alignment faces and mating profiles.
- Internal Structural Integrity: Real-time, non-destructive X-ray inspection (NDT) targeting micro-porosity, thermal cracks, and internal inclusions to preserve cross-sectional wall density.
- Fluid Containment Validation: Automated, high-precision air leakage testing equipment to ensure exact airtightness for pressure-sealed housings, coolant manifolds, and oil pans.
📍 Global Supply Chain & Geographic Verification #
Operating from our advanced precision production hub in Hengli Town, Dongguan City—the world-renowned center for advanced tooling and mold engineering—we seamlessly bridge rapid industrial prototyping with massive global scale manufacturing. Our strategic location within the Greater Bay Area manufacturing cluster ensures optimized international logistics, allowing containerized sea freight and expedited air cargo shipments to be dispatched efficiently through Shenzhen and Hong Kong shipping hubs directly to assembly facilities across North America, Europe, and Asia.
Request A Technical Quote
Have a die casting project? Submit your specifications and 2D/3D drawings (STP, STEP, IGS, PDF). Our tooling professionals will reply within 24 hours.
